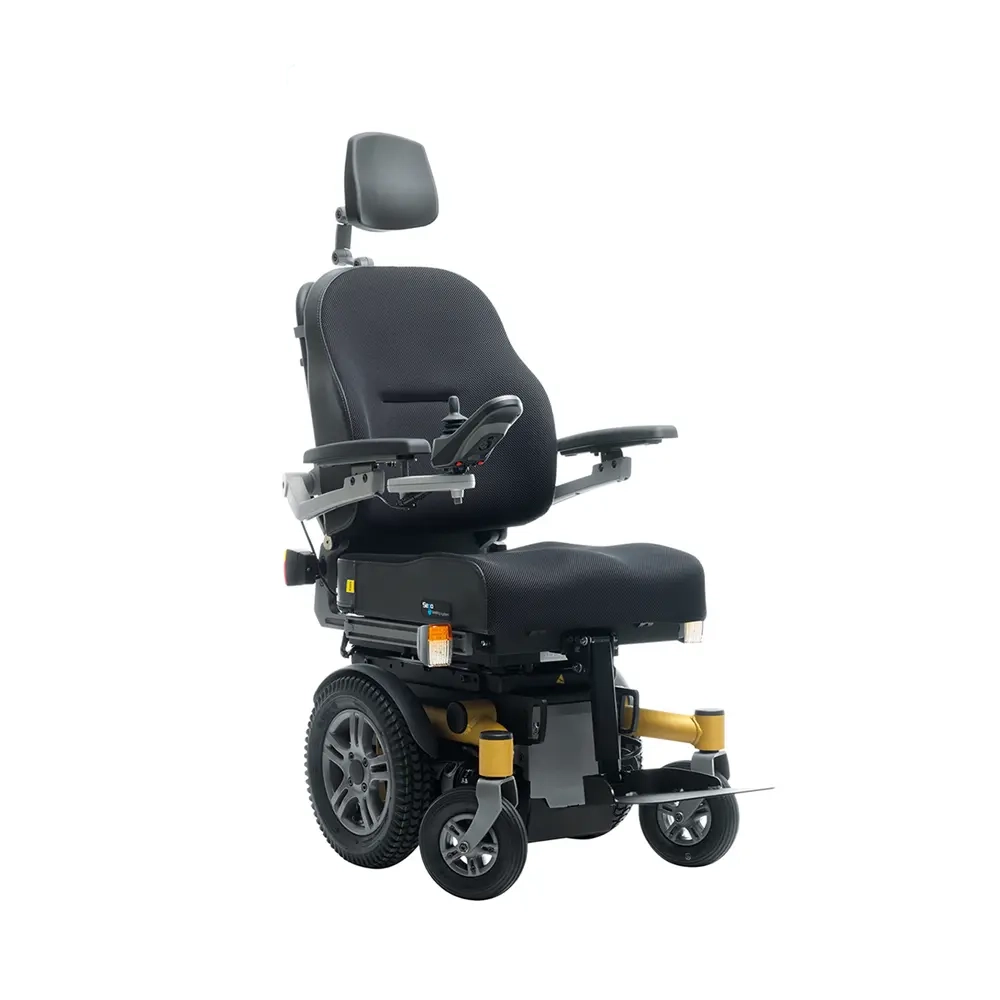

Dietz Sango Slimline

Every wheelchair user has run into situations where the width of their chair is an issue, whether that’s trying to fit through a narrow door, navigate a small lift, or something else. With both great traction and comfort the Sango Slimline is the answer: with its 53 cm width and extremely small mid-wheel drive turning circle, small and narrow’s no problem!

Key Features:

  • Available as Mid-Wheel Drive
  • Ultra compact chassis
  • Extra low seat height
  • Small turning circle



Call for Price

WE ASSESS
No third party just our own engineers and specialists
WE QUOTE
No hard sales, no pressure
WE MAINTAIN
All servicing and repairs completed by Shire Mobility engineers only.

Dietz Slimline features

  • Possible with SEGO comfort or with SEGO junior seating
  • Available as MWD, RWD and FWD
  • MWD in 6 or 10 km/h motor speed options
  • Ultra compact chassis width totalling 53 cm, even with 14″ wheels!
  • Ultra low seat height settings – from 38cm to 48cm
  • Long range 60Ah Super Cycle batteries
  • MWD extremely small turning circle
  • 4 pole high torque motors
  • 51cm ultra-compact chassis width
  • Rubber suspension system offer near silent drive
  • Crash tested and passed for 4-point occupant and DAHL drive system
  • Modular, individually adjustable seating system
  • Minimum seat width 32cm – maximum 37cm
  • Minimum seat depth 30cm – maximum 40cm

Additional information

Max User Weight

136kg (21.6st)

Seat Width

See Brochure

Seat depth

Various

Width

560mm (22")

Maximum Speed

4mph (6.4kph), 6mph (9.6kph)

Maximum Range

18 miles (30km)

SLA Batteries

60Ah

Drive Wheel

Mid-Wheel Drive

Suspension

Yes

Crash Tested

Yes

You may also like

Related Products

Frequently asked questions about Dietz Sango Slimline.

Will it fit into most wheelchair accessible vehicles?

The chassis has an ultra-compact chassis. Even with powered adjustments, the Sango Advanced has a minimum seat height of 39 cm. This makes it ideal for use in just about any wheelchair-accessible vehicle.

Is this model only available in rear wheel drive?

No, you can also choose from mid-wheel drive and front-wheel drive chassis too.

What powered functionality does it have? For instance, does it have a powered seat lift or a powered anterior seat tilt?

The Sango Slimline, thanks to the modularity of the entire Sango range, means that every component on top of the base drive unit is identical to the Sango Advanced. This includes a full range of powered options including, powered seat tilt, powered seat lift, powered backrest recline, powered anterior seat tilt, powered centre mount legrest and powered individual legrests.
